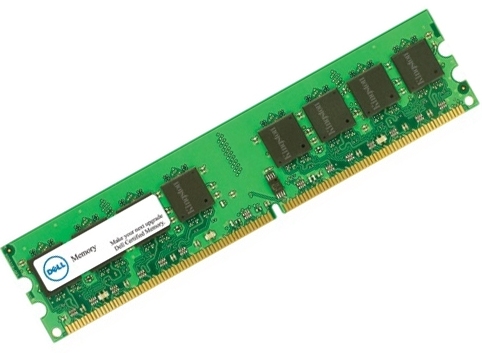

Dell A8255125 16GB DDR3-1600MHz RDIMM 2Rx4 CL11 Memory

Key specifications

The figures below come from this listing's own record. They are the ones that decide whether a part drops into an existing system.

• Memory Capacity: 16 GB. Capacity of this module, not of the system.
• RAM Genre: RDIMM. The module type, such as registered, load reduced or unbuffered; types cannot be mixed in one system.
• Memory Technology: DDR3. The memory generation the module belongs to.
• RAM Speed: 1600 MHz. Rated speed; a bank runs at the speed of its slowest module.
• RAM Standard: DDR3-1600/PC3-12800. The JEDEC speed grade printed on the module.
• Quantity of Pins: 240-pin. Pin count, which follows the generation and form factor.
• Rank: Dual Rank x4. Rank count, which affects how heavily a memory channel can be populated.
• Column Access Strobe (CAS): CL11. CAS latency, in clock cycles.
• Product Voltage: 1.35 V. The operating or input voltage recorded for this part.

Confirming fit

Memory Clearance does not publish a verified compatibility list for A8255125. Whether a part of this type is supported is defined by the system or switch vendor's own compatibility matrix, not by the part on its own.

The dependable check is the part number. Read the installed part number from the system's management interface and compare it with the number on this listing. If you send your server model with a quote request, it is checked against this part before you order.

Other Dell Server Memory listings

Other parts in the same brand and category. These are not substitutes for this part number; check the specification before ordering.

• Dell SNPG6036C/2G 2GB DDR2-400MHz RDIMM 1Rx4 CL3 Memory
• Dell 311-1941 1GB DDR-266MHz RDIMM 1Rx4 CL2.5 Memory
• Dell FW327 2GB DDR2-667MHz RDIMM 2Rx4 CL5 Memory
• Dell GM842 2GB DDR2-667MHz RDIMM 2Rx4 CL5 Memory
• Dell 317-2223 64GB Kit (8x8GB) DDR3-1333MHz RDIMM 2Rx4 CL9 Memory
• Dell 311-2354 32GB Kit (16x2GB) DDR2-533MHz RDIMM 2Rx4 CL4 Memory
• Dell 317-2058 16GB Kit (4x4GB) DDR3-1333MHz RDIMM 2Rx8 CL9 Memory
• Dell SNP1925/1G 1GB DDR-266MHz RDIMM 1Rx4 CL2.5 Memory
• Dell MY104 4GB DDR2-533MHz RDIMM 2Rx4 CL4 Memory
• Dell HF015 16GB Kit (16x1GB) DDR2-667MHz RDIMM 1Rx4 CL5 Memory

Common questions

Is A8255125 in stock?

Stock moves, so the quantity shown on this listing is the current figure. For a larger quantity, send the part number and how many you need and the answer comes back against that exact number. Quotes are answered weekdays 8:00 am to 5:00 pm PST.

Can I mix this module with the ones already installed?

Registered, load reduced and unbuffered modules cannot be mixed in one system, and a bank runs at the speed of its slowest module. Match the type and rank already installed, or replace the full bank.

How do I check what my server takes?

Read an installed part number from iDRAC or iLO and compare it with this listing, or check the platform's memory population table before ordering.

What do I send to get a price on A8255125?

The part number, the quantity, the condition you will accept and the server model it goes into. That is enough to answer in one pass.
