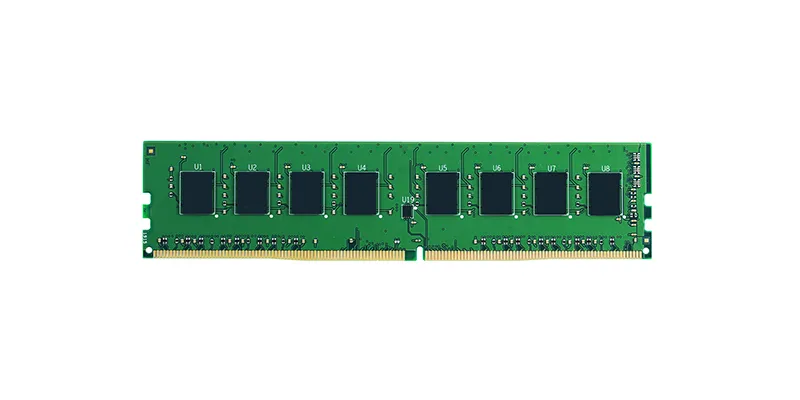

Kingston KTH-PL432/32G 32GB DDR4-3200MHz RDIMM 2Rx4 CL22 Memory

Key specifications

The figures below come from this listing's own record. They are the ones that decide whether a part drops into an existing system.

• Memory Capacity: 32 GB. Capacity of this module, not of the system.
• RAM Genre: RDIMM. The module type, such as registered, load reduced or unbuffered; types cannot be mixed in one system.
• Memory Technology: DDR4. The memory generation the module belongs to.
• RAM Speed: 3200MHz. Rated speed; a bank runs at the speed of its slowest module.
• RAM Standard: DDR4-3200/PC4-25600. The JEDEC speed grade printed on the module.
• Quantity of Pins: 288-pin. Pin count, which follows the generation and form factor.
• Rank: Dual Rank x4. Rank count, which affects how heavily a memory channel can be populated.
• Column Access Strobe (CAS): CL22. CAS latency, in clock cycles.
• Product Voltage: 1.2V. The operating or input voltage recorded for this part.

Confirming fit

Memory Clearance does not publish a verified compatibility list for KTH-PL432/32G. Whether a part of this type is supported is defined by the system or switch vendor's own compatibility matrix, not by the part on its own.

The dependable check is the part number. Read the installed part number from the system's management interface and compare it with the number on this listing. If you send your server model with a quote request, it is checked against this part before you order.

Other Kingston Server Memory listings

Other parts in the same brand and category. These are not substitutes for this part number; check the specification before ordering.

• Kingston KTH8348/1G-G 1GB DDR-333MHz RDIMM 1Rx4 CL2.5 Memory
• Kingston KTD-PE313Q8LV/16G 16GB DDR3-1333MHz RDIMM 4Rx8 CL9 Memory
• Kingston KVR800D2D8P6K2/8G 8GB Kit DDR2-800MHz RDIMM 2Rx8 CL6 Memory
• Kingston KTM-SX313/4G 4GB DDR3-1333MHz RDIMM 2Rx4 CL9 Memory
• Kingston KVR16R11D4/16 16GB DDR3-1600MHz RDIMM 2Rx4 CL11 Memory
• Kingston KTD-WS670SR/2G 2GB DDR2-400MHz RDIMM 1Rx4 CL3 Memory
• Kingston KTS-SF313/8G 8GB DDR3-1333MHz RDIMM 2Rx4 CL9 Memory
• Kingston KFJ-PM313/4G 4GB DDR3-1333MHz RDIMM 2Rx4 CL9 Memory
• Kingston KVR1333D3D4R9SK3/12G 12GB Kit DDR3-1333MHz RDIMM 2Rx4 Memory
• Kingston KTH-XW4300 1GB DDR2-667MHz PC2-5300 ECC Registered CL5 240-Pin DIMM 1.8V Memory Module

Common questions

Is KTH-PL432/32G in stock?

Stock moves, so the quantity shown on this listing is the current figure. For a larger quantity, send the part number and how many you need and the answer comes back against that exact number. Quotes are answered weekdays 8:00 am to 5:00 pm PST.

Can I mix this module with the ones already installed?

Registered, load reduced and unbuffered modules cannot be mixed in one system, and a bank runs at the speed of its slowest module. Match the type and rank already installed, or replace the full bank.

How do I check what my server takes?

Read an installed part number from iDRAC or iLO and compare it with this listing, or check the platform's memory population table before ordering.

What do I send to get a price on KTH-PL432/32G?

The part number, the quantity, the condition you will accept and the server model it goes into. That is enough to answer in one pass.
