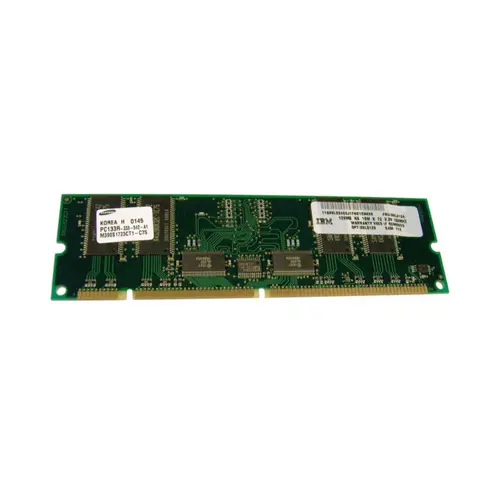

IBM 33L3124 128MB DDR133MHz PC133 CL3 RDIMM Memory

Key specifications

The figures below come from this listing's own record. They are the ones that decide whether a part drops into an existing system.

• Memory Capacity: 128 MB. Capacity of this module, not of the system.
• RAM Genre: DIMM. The module type, such as registered, load reduced or unbuffered; types cannot be mixed in one system.
• RAM Speed: 133MHz. Rated speed; a bank runs at the speed of its slowest module.
• Quantity of Pins: 168-pin. Pin count, which follows the generation and form factor.
• Column Access Strobe (CAS): CL3. CAS latency, in clock cycles.
• Product Voltage: 3.3V. The operating or input voltage recorded for this part.
• Signal Type: Registered. The signalling the part uses.

Confirming fit

Memory Clearance does not publish a verified compatibility list for 33L3124. Whether a part of this type is supported is defined by the system or switch vendor's own compatibility matrix, not by the part on its own.

The dependable check is the part number. Read the installed part number from the system's management interface and compare it with the number on this listing. If you send your server model with a quote request, it is checked against this part before you order.

Other IBM Server Memory listings

Other parts in the same brand and category. These are not substitutes for this part number; check the specification before ordering.

• IBM 41P5642 2GB DDR-266MHz RDIMM 2Rx4 CL2.5 Memory
• IBM 46C0567 4GB DDR3-1333MHz RDIMM 2Rx4 CL9 Memory
• IBM 00D5047 16GB DDR3-1866MHz RDIMM 2Rx4 CL13 Memory
• IBM 38L5094 2GB DDR2-400MHz RDIMM 2Rx4 CL3 Memory
• IBM 47J0218 4GB DDR3-1866MHz RDIMM 1Rx8 CL13 Memory
• IBM 46C0591 4GB DDR3-1333MHz RDIMM 2Rx4 CL9 Memory
• IBM 46C0528 4GB DDR3-1333MHz RDIMM 2Rx4 CL9 Memory
• IBM 20R1496 1GB DDR-333MHz RDIMM 1Rx4 CL2.5 Memory
• IBM 47J0172 4GB DDR3-1600MHz RDIMM 2Rx8 CL11 Memory
• IBM 49Y1569 16GB DDR3-1333MHz VLP RDIMM 4Rx8 CL9 Memory

Common questions

Is 33L3124 in stock?

Stock moves, so the quantity shown on this listing is the current figure. For a larger quantity, send the part number and how many you need and the answer comes back against that exact number. Quotes are answered weekdays 8:00 am to 5:00 pm PST.

Can I mix this module with the ones already installed?

Registered, load reduced and unbuffered modules cannot be mixed in one system, and a bank runs at the speed of its slowest module. Match the type and rank already installed, or replace the full bank.

How do I check what my server takes?

Read an installed part number from iDRAC or iLO and compare it with this listing, or check the platform's memory population table before ordering.

What do I send to get a price on 33L3124?

The part number, the quantity, the condition you will accept and the server model it goes into. That is enough to answer in one pass.
