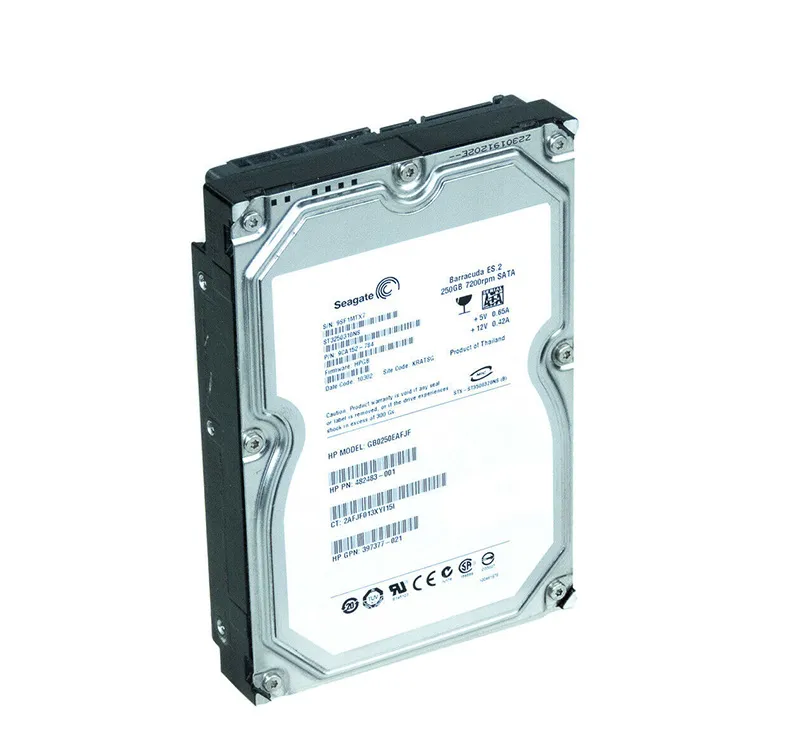

HP GB0250EAFJF 250GB 3Gb/s SATA 7200 3.5-inch Hard Drive

Key specifications

The figures below come from this listing's own record. They are the ones that decide whether a part drops into an existing system.

• Storage Capacity: 250 GB. Usable capacity as the manufacturer states it.
• Drive Interface: SATA. The bus the drive expects; the controller or backplane has to present the same one.
• Interface Standard: 3Gb/s SATA. The negotiated link standard.
• Maximum Data Transfer Rate: 3Gb/s. Peak link rate, which is not the same as sustained throughput.
• Drive Type: Internal. Where the drive is designed to sit.
• Drive Width: 3.5". Bay width, which decides whether it drops into the slot.
• RPM: 7200. Rotational speed recorded for this part.
• Swappable: Yes. Whether the part is designed to be changed with the system running.

Confirming fit

Memory Clearance does not publish a verified compatibility list for GB0250EAFJF. Whether a part of this type is supported is defined by the system or switch vendor's own compatibility matrix, not by the part on its own.

The dependable check is the part number. Read the installed part number from the system's management interface and compare it with the number on this listing. If you send your server model with a quote request, it is checked against this part before you order.

Other HP Server Hard Drives listings

Other parts in the same brand and category. These are not substitutes for this part number; check the specification before ordering.

• HP 818369-002 2TB 7200RPM SAS 12Gb/s 3.5-Inch Midline Hard Drive
• HP 743405-001 4TB 6Gb/s SAS 7200 3.5-in Hard Drive
• HP K0F28A 6TB 6Gb/s SAS 7200 3.5-Inch Hard Drive
• HP 868151-001 8TB 7200RPM SAS 6Gb/s 3.5-Inch Midline Hard Drive for MSA Storage
• HP 480528-002 450GB 3Gb/s SAS 15000 3.5-in Hard Drive
• HP P09799-B21 10TB 7200RPM SAS 12Gb/s Midline 3.5-Inch Hard Drive
• HP MBC2036RCSEALED 36GB 15000RPM SAS 3Gb/s Hot-Pluggable 2.5-Inch Hard Drive
• HP QR478A 900GB 6Gb/s SAS 10000 2.5-Inch Hard Drive
• HP 454274-001 450GB 3Gb/s SAS 15000 3.5-in Hard Drive
• HP MB3000FBUCN-M6612 3TB 6Gb/s SAS 7200 3.5-inch 64MB Hard Drive

Common questions

Is GB0250EAFJF in stock?

Stock moves, so the quantity shown on this listing is the current figure. For a larger quantity, send the part number and how many you need and the answer comes back against that exact number. Quotes are answered weekdays 8:00 am to 5:00 pm PST.

Does this drive come with a tray?

Only if the listing name says so. Drive listings are either bare or supplied in a generation-matched hot-swap tray, and the name states which.

Can I use this to replace a failed array member?

Match the interface, the capacity, the sector format and the class of the drive already in the array. A mismatch on any of those can be rejected by the controller.

What do I send to get a price on GB0250EAFJF?

The part number, the quantity, the condition you will accept and the server model it goes into. That is enough to answer in one pass.
