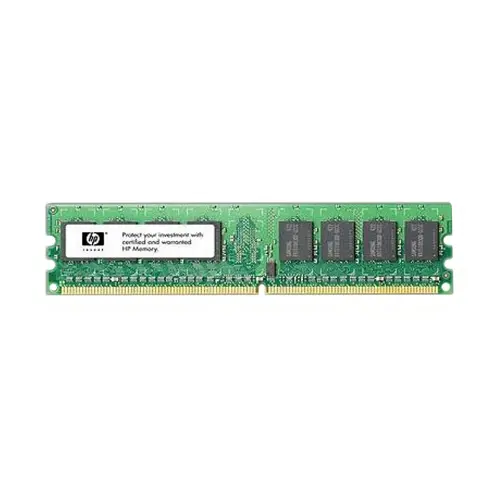

HP AH411AR 128GB Kit (32x4GB) DDR2-533MHz RDIMM 2Rx8 CL4 Memory

Key specifications

The figures below come from this listing's own record. They are the ones that decide whether a part drops into an existing system.

• Memory Capacity: 128GB 32 x 4GB. Capacity of this module, not of the system.
• RAM Genre: RDIMM. The module type, such as registered, load reduced or unbuffered; types cannot be mixed in one system.
• Memory Technology: DDR2. The memory generation the module belongs to.
• RAM Speed: 533MHz. Rated speed; a bank runs at the speed of its slowest module.
• RAM Standard: DDR2-533/PC2-4200. The JEDEC speed grade printed on the module.
• Quantity of Pins: 278-pin. Pin count, which follows the generation and form factor.
• Rank: Dual Rank x8. Rank count, which affects how heavily a memory channel can be populated.
• Column Access Strobe (CAS): CL4. CAS latency, in clock cycles.
• Product Voltage: 1.8V. The operating or input voltage recorded for this part.

Confirming fit

Memory Clearance does not publish a verified compatibility list for AH411AR. Whether a part of this type is supported is defined by the system or switch vendor's own compatibility matrix, not by the part on its own.

The dependable check is the part number. Read the installed part number from the system's management interface and compare it with the number on this listing. If you send your server model with a quote request, it is checked against this part before you order.

Other HP Server Memory listings

Other parts in the same brand and category. These are not substitutes for this part number; check the specification before ordering.

• HP 483401-S21 4GB Kit (2x2GB) DDR2-667MHz RDIMM 1Rx4 CL5 Memory
• HP 408853-S21 4GB Kit (2x2GB) DDR2-667MHz RDIMM 2Rx4 CL5 Memory
• HP 500658-32G 32GB Kit (8 X 4GB) DDR3-1333MHz PC3-10600 ECC Registered CL9 240-Pin DIMM 1.35V...
• HP 943XSB3 8GB Kit (2x4GB) DDR2-800MHz RDIMM 2Rx4 CL6 Memory
• HP AH412A 128GB Kit (16x8GB) DDR2-533MHz RDIMM 4Rx4 CL4 Memory
• HP 495605-S21 64GB Kit (8x8GB) DDR2-667MHz RDIMM 2Rx4 CL5 Memory
• HP 595094-001 2GB DDR3-1333MHz RDIMM 2Rx8 CL9 Memory
• HP 593911-S21 4GB DDR3-1333MHz RDIMM 1Rx4 CL9 Memory
• HP 9435YTS 8GB DDR3-1600MHz RDIMM 2Rx4 CL11 Memory
• HP 593907-S21 2GB DDR3-1333MHz RDIMM 2Rx8 CL9 Memory

Common questions

Is AH411AR in stock?

Stock moves, so the quantity shown on this listing is the current figure. For a larger quantity, send the part number and how many you need and the answer comes back against that exact number. Quotes are answered weekdays 8:00 am to 5:00 pm PST.

Can I mix this module with the ones already installed?

Registered, load reduced and unbuffered modules cannot be mixed in one system, and a bank runs at the speed of its slowest module. Match the type and rank already installed, or replace the full bank.

How do I check what my server takes?

Read an installed part number from iDRAC or iLO and compare it with this listing, or check the platform's memory population table before ordering.

What do I send to get a price on AH411AR?

The part number, the quantity, the condition you will accept and the server model it goes into. That is enough to answer in one pass.
