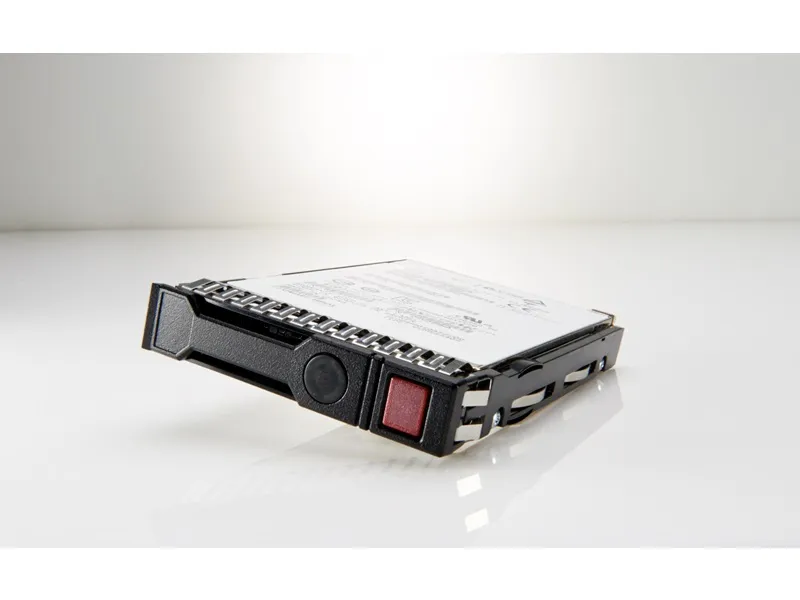

HPE P13835-001 1.6TB TLC Mixed Use PCI Express NVMe x4 2.5-In SSD

Key specifications

The figures below come from this listing's own record. They are the ones that decide whether a part drops into an existing system.

• Storage Capacity: 1.6 TB. Usable capacity as the manufacturer states it.
• Drive Interface: PCI Express NVMe. The bus the drive expects; the controller or backplane has to present the same one.
• Interface Standard: PCI Express NVMe x4. The negotiated link standard.
• Drive Width: 2.5". Bay width, which decides whether it drops into the slot.
• Flash Memory Technology: Triple-Level Cell. The NAND type, which tracks with endurance and cost.
• Form Factor: SFF. The size or mounting class the catalogue records for this part.
• Swappable: Yes. Whether the part is designed to be changed with the system running.

Confirming fit

Memory Clearance does not publish a verified compatibility list for P13835-001. Whether a part of this type is supported is defined by the system or switch vendor's own compatibility matrix, not by the part on its own.

The dependable check is the part number. Read the installed part number from the system's management interface and compare it with the number on this listing. If you send your server model with a quote request, it is checked against this part before you order.

Other HPE Solid State Drives listings

Other parts in the same brand and category. These are not substitutes for this part number; check the specification before ordering.

• HP 805390-001 800GB SATA 6Gb/s Write Intensive 2.5-in SSD with Tray
• HP 817047-001 480GB RI SAS 12Gb/s 2.5-in Solid State Drive
• HP 806554-001 480GB Multi-Level Cell (MLC) SAS 2.5-inch Solid State Drive for StoreServ 7000
• HPE P13682-B21 7.68TB TLC PCIeNVMe x4 Read Intensive 2.5-inch SSD
• HPE P9M59B 15.36TB SAS 12Gb/s (SFF) 2.5-Inch Solid State Drive
• HPE Q2N43A 480GB SATA 6Gb/s Mixed Use 2.5-Inch Solid State Drive
• HP QR625C 200GB 4Gb/s Fibre Channel 2.5-inch Solid State Drive
• HP 869252-001 480GB PCI-Express x4 NVMe 2.5-Inch Solid State Drive
• HPE Q5V88AR 1.92TB SATA 6Gb/s 2.5-Inch Solid State Drive for SimpliVity 380 (5-Pack)
• HP K2P88B 480GB cMLC SAS 2.5-inch SSD with Software

Common questions

Is P13835-001 in stock?

Stock moves, so the quantity shown on this listing is the current figure. For a larger quantity, send the part number and how many you need and the answer comes back against that exact number. Quotes are answered weekdays 8:00 am to 5:00 pm PST.

Does this drive come with a tray?

Only if the listing name says so. Drive listings are either bare or supplied in a generation-matched hot-swap tray, and the name states which.

Can I use this to replace a failed array member?

Match the interface, the capacity, the sector format and the class of the drive already in the array. A mismatch on any of those can be rejected by the controller.

What do I send to get a price on P13835-001?

The part number, the quantity, the condition you will accept and the server model it goes into. That is enough to answer in one pass.
