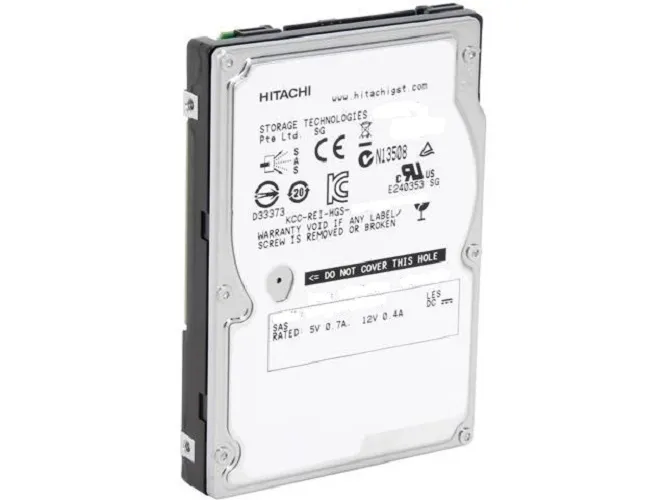

HGST HUC101812CSS200 1.2TB 12Gb/s SAS 10520 2.5-inch 128MB Hard Drive

Key specifications

The figures below come from this listing's own record. They are the ones that decide whether a part drops into an existing system.

• Storage Capacity: 1.2 TB. Usable capacity as the manufacturer states it.
• Drive Interface: SAS. The bus the drive expects; the controller or backplane has to present the same one.
• Interface Standard: 12Gb/s SAS. The negotiated link standard.
• Maximum Data Transfer Rate: 12 Gb/s. Peak link rate, which is not the same as sustained throughput.
• Drive Type: Internal. Where the drive is designed to sit.
• Drive Width: 2.5". Bay width, which decides whether it drops into the slot.
• RPM: 10000. Rotational speed recorded for this part.
• Cache Storage: 128 MB. Onboard cache or buffer.
• Form Factor: SFF. The size or mounting class the catalogue records for this part.

Confirming fit

Memory Clearance does not publish a verified compatibility list for HUC101812CSS200. Whether a part of this type is supported is defined by the system or switch vendor's own compatibility matrix, not by the part on its own.

The dependable check is the part number. Read the installed part number from the system's management interface and compare it with the number on this listing. If you send your server model with a quote request, it is checked against this part before you order.

Other Western Digital Server Hard Drives listings

Other parts in the same brand and category. These are not substitutes for this part number; check the specification before ordering.

• WD HUS726T6TALE6yz 6TB 6Gb/s SATA 7200 3.5-inch 256MB Hard Drive
• WD WD4500F4PZ-49ND9M0 4.5TB 6Gb/s SATA 5760 3.5-inch 64MB Hard Drive
• WD HUS726T4TALA6yz 4TB 6Gb/s SATA 7200 3.5-inch 256MB Hard Drive
• Western Digital WDE4360-1808A2 4GB 7200RPM SCSI 80-Pin 512KB Cache 3.5-Inch Hard Drive
• WD WD6001HKHG-02VUCV3 600GB 6Gb/s SAS 10000 3.5-inch 32MB Hard Drive
• WD HUS726T4TALE6yz 4TB 6Gb/s SATA 7200 3.5-inch 256MB Hard Drive
• WD WDBMMA0050HNC-NRSN 5TB 6Gb/s SATA 5400 3.5-inch 64MB Hard Drive
• Western WD9001HKHG Digital 900GB 6Gb/s SAS 10000 3.5-in 32MB HDD
• Western WD3001GRRB Digital 300GB 6Gb/s SAS 15000 2.5-in 32MB HDD
• Western WDBABC0010BNC Digital 1TB 3Gb/s SATA 5400 2.5-inch 8MB Hard Drive

Common questions

Is HUC101812CSS200 in stock?

Stock moves, so the quantity shown on this listing is the current figure. For a larger quantity, send the part number and how many you need and the answer comes back against that exact number. Quotes are answered weekdays 8:00 am to 5:00 pm PST.

Does this drive come with a tray?

Only if the listing name says so. Drive listings are either bare or supplied in a generation-matched hot-swap tray, and the name states which.

Can I use this to replace a failed array member?

Match the interface, the capacity, the sector format and the class of the drive already in the array. A mismatch on any of those can be rejected by the controller.

What do I send to get a price on HUC101812CSS200?

The part number, the quantity, the condition you will accept and the server model it goes into. That is enough to answer in one pass.
