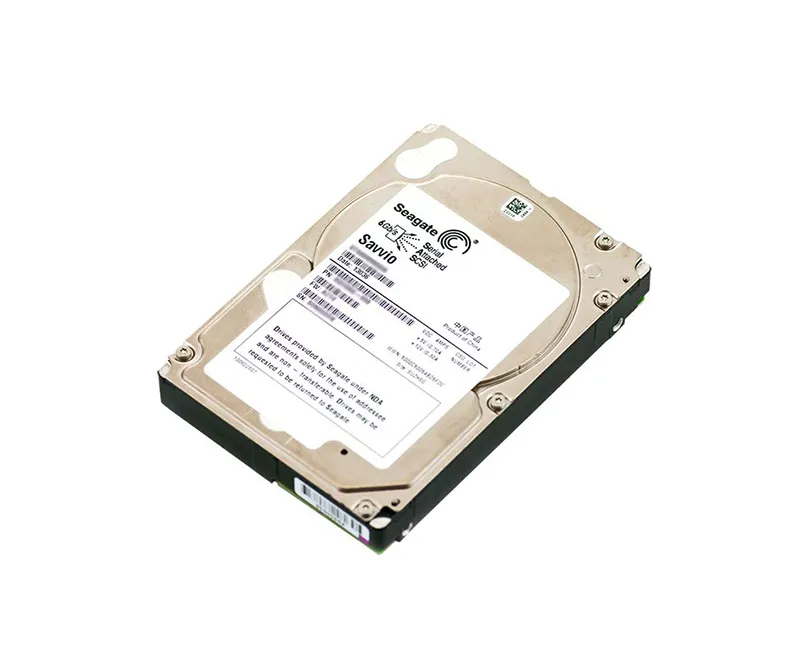

Seagate 9MB066-035 73.4GB 3Gb/s SAS 15000 2.5-in 16MB Hard Drive
* NOTE: Image may not exactly match the product
Seagate 9MB066-035 73.4GB 3Gb/s SAS 15000 2.5-in 16MB Hard Drive
9MB066-035
Seagate
Shipping Options:
- Ships Same Business Day ( If ordered before 2:00pm EST)
- Free Ground Shipping ( Contiguous US and Canada)
- Expedite Shipping in US
30 Days Return Warranty
Accept Payment
- Visa
- Discover
- Mastercard
- Pay with wire transfer
- AMEX
Process POs for Government Agencies, Enterprises, Data Centers and SMBs
Need Assistance? We are here to help!
- Call us at (800) 733-1169
Monday to Friday, 8:00 am - 5:00 pm PST - Email: [email protected]
- Live Chat with Technical Sales
Product Description
Key takeaways
- Seagate 9MB066-035 is a 73.4GB 3Gb/s SAS 2.5-inch internal hard drive in the Savvio line for server use, with 15000 RPM, 16MB cache, 15K.1 series and 0.591 x 2.76 x 3.955 inches.
- Sold refurbished and a package quantity of 1.
- Reference part number 9MB066-035 or UPC 638353071738 (EAN 0638353071738) when matching this listing to a quote, purchase order or existing inventory; Memory Clearance lists it under Server Hard Drives.
- Quoted on request; no list price is published for this part number. Include the quantity needed with the quote request.
The Savvio 15K.1 9MB066-035 drive offers a 73.4GB solution in a compact 2.5-Inch design, engineered for high-performance storage demands. Featuring advanced Tunneling Magnetoresistive (TMR) technology and a 3Gb/s SAS interface, this drive reaches impressive data transfer speeds up to 400 MB/s, or 800 MB/s when utilized in dual-loop configurations. With robust support for Fibre Channel Arbitrated Loop (FC-AL) and SCSI Fibre Channel Protocol, it easily integrates into demanding setups, from advanced workstations to high-performance supercomputers. Built for reliability, the Savvio 15K.1 includes protective features like an automatic shipping lock and a dynamic spindle brake to safeguard data and enhance durability.
Key specifications
The figures below come from this listing's own record. They are the ones that decide whether a part drops into an existing system.
- Storage Capacity: 73.4GB. Usable capacity as the manufacturer states it.
- Drive Interface: SAS. The bus the drive expects; the controller or backplane has to present the same one.
- Interface Standard: 3Gb/s SAS. The negotiated link standard.
- Maximum Data Transfer Rate: 3 Gb/s. Peak link rate, which is not the same as sustained throughput.
- Drive Type: Internal. Where the drive is designed to sit.
- Drive Width: 2.5". Bay width, which decides whether it drops into the slot.
- RPM: 15000. Rotational speed recorded for this part.
- Cache Storage: 16MB. Onboard cache or buffer.
Confirming fit
Memory Clearance does not publish a verified compatibility list for 9MB066-035. Whether a part of this type is supported is defined by the system or switch vendor's own compatibility matrix, not by the part on its own.
The dependable check is the part number. Read the installed part number from the system's management interface and compare it with the number on this listing. If you send your server model with a quote request, it is checked against this part before you order.
Other Seagate Server Hard Drives listings
Other parts in the same brand and category. These are not substitutes for this part number; check the specification before ordering.
- Seagate 9JX248-150 2TB 6Gb/s SAS 7200 3.5-in 16MB Hard Drive
- Seagate ST600MP0156 600GB 12Gb/s SAS 15000 2.5-in 256MB Hard Drive
- Seagate ST600MM0046 600GB 6Gb/s SAS 10000 2.5-inch 64MB Hard Drive
- Seagate ST900MM0178 900GB 12Gb/s SAS 10000 2.5-in 128MB Hard Drive
- Seagate 1FN202-001 1TB 12Gb/s SAS 7200 2.5-in 128MB Hard Drive
- Seagate ST8000NM0175 8TB 12Gb/s SAS 7200 3.5-inch 256MB Hard Drive
- Seagate 1AV268-001 2TB 6Gb/s SAS 7200 3.5-in 64MB Hard Drive
- Seagate 1FM222-002 2TB 12Gb/s SAS 7200 2.5-in 128MB Hard Drive
- Seagate ST1000NM0025 1TB 6Gb/s SAS 7200 3.5-inch 128MB Hard Drive
- Seagate 92E066-175 300GB 10000RPM SAS 6Gb/s 2.5-Inch SFF Hard Drive
Common questions
Is 9MB066-035 in stock?
Stock moves, so the quantity shown on this listing is the current figure. For a larger quantity, send the part number and how many you need and the answer comes back against that exact number. Quotes are answered weekdays 8:00 am to 5:00 pm PST.
Does this drive come with a tray?
Only if the listing name says so. Drive listings are either bare or supplied in a generation-matched hot-swap tray, and the name states which.
Can I use this to replace a failed array member?
Match the interface, the capacity, the sector format and the class of the drive already in the array. A mismatch on any of those can be rejected by the controller.
What do I send to get a price on 9MB066-035?
The part number, the quantity, the condition you will accept and the server model it goes into. That is enough to answer in one pass.
Guides
Browse related listings
- Collections: 15K RPM Server Hard Drives
- Category: Server Hard Drives
- Brand: Seagate
128-entry task queue depth
Supports up to 32 system initiators
Precision servo for stable data tracking
Background Media Scan (BGMS) for proactive data maintenance
Idle Read After Write (IRAW) for data accuracy
Dedicated data-protective landing zone
General Information
Technical Information
Interfaces/Ports
Miscellaneous
- RoHS
- WEEE
