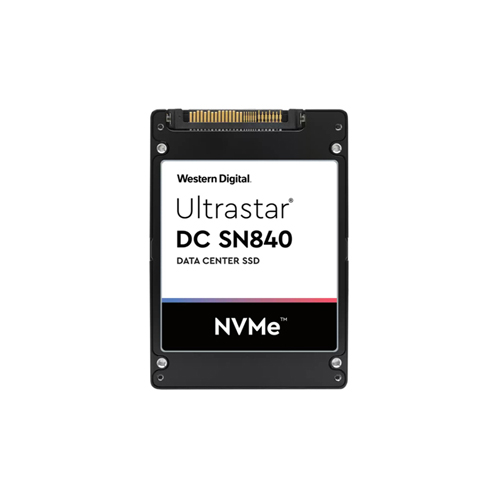

WD 0TS2054 3.2TB PCI Express NVMe 3.1 x4 TLC U.2 2.5-inch SSD

Key specifications

The figures below come from this listing's own record. They are the ones that decide whether a part drops into an existing system.

• Storage Capacity: 3.2TB. Usable capacity as the manufacturer states it.
• Drive Interface: PCI Express NVMe. The bus the drive expects; the controller or backplane has to present the same one.
• Interface Standard: PCI Express NVMe 3.1. The negotiated link standard.
• Maximum Data Transfer Rate: 8Gb/s. Peak link rate, which is not the same as sustained throughput.
• Drive Width: 2.5". Bay width, which decides whether it drops into the slot.
• Flash Memory Technology: Triple-Level Cell. The NAND type, which tracks with endurance and cost.
• Form Factor: U.2. The size or mounting class the catalogue records for this part.

Confirming fit

Memory Clearance does not publish a verified compatibility list for 0TS2054. Whether a part of this type is supported is defined by the system or switch vendor's own compatibility matrix, not by the part on its own.

The dependable check is the part number. Read the installed part number from the system's management interface and compare it with the number on this listing. If you send your server model with a quote request, it is checked against this part before you order.

Other Western Digital Solid State Drives listings

Other parts in the same brand and category. These are not substitutes for this part number; check the specification before ordering.

• WD 0TS2064 7.68TB PCI Express NVMe 3.1 x4 TLC U.2 2.5-inch SSD
• WD WUS4BB019D7P3E1 1.92TB PCI Express NVMe 3.1 x4 TLC U.2 2.5-inch SSD
• WD WUS4CB032D7P3E4 3.2TB PCI Express NVMe 3.1 x4 TLC U.2 2.5-inch SSD
• WD WUSTR6464ASS205 6.4TB 12Gb/s SAS Triple-Level Cell 2.5-inch SSD
• WD SDBQNPZ-1T00 1TB PCI Express NVMe 3.0 x4 TLC M.2 2280 SSD
• Western 0P40326 Digital 960GB 12Gb/s SAS Triple-Level Cell 2.5-inch SSD
• WD SDBPTPZ-512G-XI 512GB PCI Express NVMe 3.1 x4 TLC M.2 2230 SSD
• WD SDBPTPZ-085G-XI 256GB PCI Express NVMe 3.1 x4 TLC M.2 2230 SSD
• WD 0TS2059 1.6TB PCI Express NVMe 3.1 x4 TLC U.2 2.5-inch SSD
• WD WUS4BB096D7P3E4 960GB PCI Express NVMe 3.1 x4 TLC U.2 2.5-inch SSD

Common questions

Is 0TS2054 in stock?

Stock moves, so the quantity shown on this listing is the current figure. For a larger quantity, send the part number and how many you need and the answer comes back against that exact number. Quotes are answered weekdays 8:00 am to 5:00 pm PST.

Does this drive come with a tray?

Only if the listing name says so. Drive listings are either bare or supplied in a generation-matched hot-swap tray, and the name states which.

Can I use this to replace a failed array member?

Match the interface, the capacity, the sector format and the class of the drive already in the array. A mismatch on any of those can be rejected by the controller.

What do I send to get a price on 0TS2054?

The part number, the quantity, the condition you will accept and the server model it goes into. That is enough to answer in one pass.
