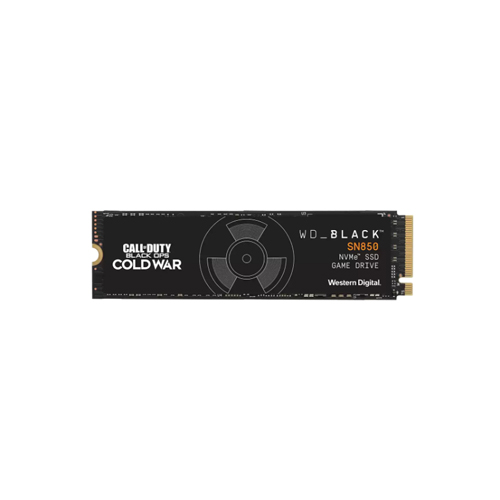

WD WDBB2F0010BNC-WRSN 1TB PCI Express NVMe 4.0 x4 TLC M.2 2280 SSD
* NOTE: Image may not exactly match the product
WD WDBB2F0010BNC-WRSN 1TB PCI Express NVMe 4.0 x4 TLC M.2 2280 SSD
WDBB2F0010BNC-WRSN
Western Digital
Shipping Options:
- Ships Same Business Day ( If ordered before 2:00pm EST)
- Free Ground Shipping ( Contiguous US and Canada)
- Expedite Shipping in US
30 Days Return Warranty
Accept Payment
- Visa
- Discover
- Mastercard
- Pay with wire transfer
- AMEX
Process POs for Government Agencies, Enterprises, Data Centers and SMBs
Need Assistance? We are here to help!
- Call us at (800) 733-1169
Monday to Friday, 8:00 am - 5:00 pm PST - Email: [email protected]
- Live Chat with Technical Sales
Product Description
Key takeaways
- Western Digital WDBB2F0010BNC-WRSN is a 1TB PCI Express NVMe 4.0 x4 M.2 solid state drive for server use, with Triple-Level Cell flash and SN850 series.
- Sold new and a package quantity of 1.
- Reference part number WDBB2F0010BNC-WRSN when matching this listing to a quote, purchase order or existing inventory; Memory Clearance lists it under Solid State Drives.
- Quoted on request; no list price is published for this part number. Include the quantity needed with the quote request.
The SN850 WDBB2F0010BNC-WRSN SSD offers blazing-fast speeds of up to 7000MB/s read and 5300MB/s write, powered by PCIe NVMe 4.0 x4 technology, with up to 1,000,000 IOPS for superior gaming performance. Designed with an integrated heatsink and customizable RGB lighting, which can be controlled via the WD_BLACK Dashboard (Windows only), this SSD ensures both style and efficiency. Available in 1TB and a sleek M.2 2280, it provides ample storage for your game library and high performance across multiple platforms.
Key specifications
The figures below come from this listing's own record. They are the ones that decide whether a part drops into an existing system.
- Storage Capacity: 1 TB. Usable capacity as the manufacturer states it.
- Drive Interface: PCI Express NVMe. The bus the drive expects; the controller or backplane has to present the same one.
- Interface Standard: PCI Express NVMe 4.0 x4. The negotiated link standard.
- Maximum Data Transfer Rate: 16Gb/s. Peak link rate, which is not the same as sustained throughput.
- Flash Memory Technology: Triple-Level Cell. The NAND type, which tracks with endurance and cost.
- Form Factor: M.2 2280. The size or mounting class the catalogue records for this part.
Confirming fit
Memory Clearance does not publish a verified compatibility list for WDBB2F0010BNC-WRSN. Whether a part of this type is supported is defined by the system or switch vendor's own compatibility matrix, not by the part on its own.
The dependable check is the part number. Read the installed part number from the system's management interface and compare it with the number on this listing. If you send your server model with a quote request, it is checked against this part before you order.
Other Western Digital Solid State Drives listings
Other parts in the same brand and category. These are not substitutes for this part number; check the specification before ordering.
- WD WUS4CB064D7P3E4 6.4TB PCI Express NVMe 3.1 x4 TLC U.2 2.5-inch SSD
- WD SDCQNRY-256G 256GB PCI Express NVMe 4.0 x4 M.2 2280 SSD
- WD SDBPTPZ-1T00-XI 1TB PCI Express NVMe 3.1 x4 TLC M.2 2230 SSD
- WD WUS4BB038D7P3E1 3.84TB PCI Express NVMe 3.1 x4 TLC U.2 2.5-inch SSD
- WD 0TS2063 6.4TB PCI Express NVMe 3.1 x4 TLC U.2 2.5-inch SSD
- Western SDCPNRY-256G Digital 256GB PCI Express NVMe 4.0 M.2 2280 SSD
- WD 0TS2061 3.2TB PCI Express NVMe 3.1 x4 TLC U.2 2.5-inch SSD
- Western SSD-C12MI-3812 Digital 128MB CompactFlash Solid State Drive
- WD WUSTR1519ASS201 1.92TB 12Gb/s SAS Triple-Level Cell 2.5-inch SSD
- WD SDBPTPZ-512G-XI 512GB PCI Express NVMe 3.1 x4 TLC M.2 2230 SSD
Common questions
Is WDBB2F0010BNC-WRSN in stock?
Stock moves, so the quantity shown on this listing is the current figure. For a larger quantity, send the part number and how many you need and the answer comes back against that exact number. Quotes are answered weekdays 8:00 am to 5:00 pm PST.
Does this drive come with a tray?
Only if the listing name says so. Drive listings are either bare or supplied in a generation-matched hot-swap tray, and the name states which.
Can I use this to replace a failed array member?
Match the interface, the capacity, the sector format and the class of the drive already in the array. A mismatch on any of those can be rejected by the controller.
What do I send to get a price on WDBB2F0010BNC-WRSN?
The part number, the quantity, the condition you will accept and the server model it goes into. That is enough to answer in one pass.
Guides
Browse related listings
- Collections: NVMe Enterprise SSDs, M.2 SSDs
- Category: Solid State Drives
- Brand: Western Digital
The heatsink-equipped version efficiently dissipates heat, preventing thermal throttling, ideal for both desktop PCs and PlayStation 5
Customize your RGB lighting and drive settings using the WD_BLACK Dashboard.
The optional heatsink model offers protection against overheating during intense gaming sessions
WD_BLACK Dashboard lets you monitor drive health and optimize performance for the best gaming experience
General Information
Technical Information
Interfaces/Ports
Physical Characteristics
- M.2 2280
