Supermicro X12SPW-TF Socket LGA-4189 Proprietary WIO Motherboard

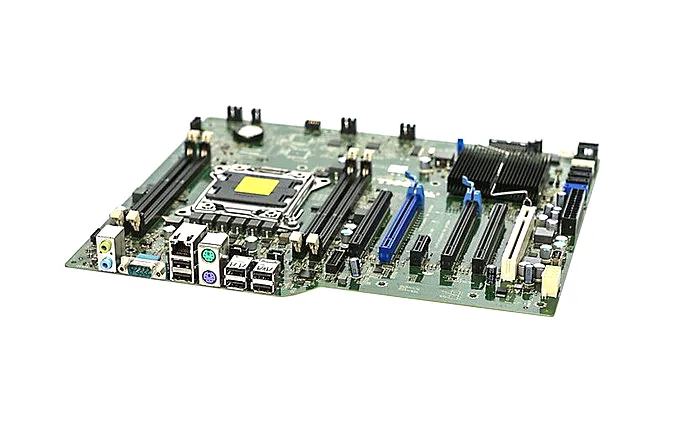

* NOTE: Image may not exactly match the product

Supermicro X12SPW-TF Socket LGA-4189 Proprietary WIO Motherboard

Part Number:

X12SPW-TF

Manufacturer:

Supermicro

Availability:In Stock
Warranty: 1 Year (Return/Replacement)

$795.00

$935.29

You save: $140.29

Upto 2% discount on checkout

Shipping Options:
  • Ships Same Business Day ( If ordered before 2:00pm EST)
  • Free Ground Shipping ( Contiguous US and Canada)
  • Expedite Shipping in US
30 Days Return Warranty
Accept Payment
  • Visa
  • Discover
  • Mastercard
  • Pay with wire transfer
  • AMEX
Process POs for Government Agencies, Enterprises, Data Centers and SMBs

Need Assistance? We are here to help!

  • Call us at (800) 733-1169
    Monday to Friday, 8:00 am - 5:00 pm PST
  • Email: support@memoryclearance.com
  • Live Chat with Technical Sales

Product Description

Supermicro X12SPW-TF Socket LGA-4189 Intel C621A Chipset Proprietary WIO System Board (Motherboard) Supports Xeon Scalable DDR4 8x DIMM
Product Condition:New

Technical Information

Ethernet Standard
10 Gigabit Ethernet
Memory Technology
DDR4 SDRAM
RAM Genre
RDIMM,LRDIMM
Socket Type
Socket P+ LGA-4189
Chipset Vendor
Intel
Chipset Model
C621A
Quantity of Processor Supported
1
Supported Processor
Xeon Platinum
Built-in Processor Vendor
Intel
Built-in Processor Type
Xeon
Built-in Processor Model
8356H
Built-in Processor Speed
3.9 GHz
Built-in Processor Core
Octa-core (8 Core)
Quantity of Memory Slots
8
Maximum Memory
2 TB
Optane Memory Ready (Specific for Intel)
Yes
Controller Type
Serial ATA/600
Raid Supported
Yes
Raid Levels
0,1,5,10
Onboard Video
On-board Video Chipset
Graphics Controller Vendor
ASPEED
Graphics Controller Model
AST2600 BMC

Interfaces/Ports

Quantity of Ethernet LAN Ports (RJ-45/SFP/SFP+)
2
VGA Port
Yes
Quantity of Expansion Slots
3
Quantity of USB Ports
9
Ethernet Port (RJ-45)
Yes
Quantity of PCI Express Slots
2
Quantity of PCI Express x16 Slots
1
Quantity of PCI Express x32 Slots
1
Quantity of SATA Interfaces
10
Quantity of M.2 Interfaces
1
Quantity of Onboard USB Ports
9
Quantity of Onboard USB 3.0 Ports
5
Quantity of NVMe Ports
4
Quantity of USB 2.0 Ports
4

Physical Characteristics

Height
8 Inches
Width
13 Inches
Form Factor
Proprietary Form Factor

Miscellaneous

Compatibility
  • SYS-110P-FDWTR
  • SYS-110P-WTR
  • SC116AC10-R706WB3
  • SC815TQC4-R504WB3
  • SC815TQC4-605WB2
  • SC825BTQC-R609WB
Compliance Standards
RoHS
Assembly Required
Yes
Eco Friendly
Yes
