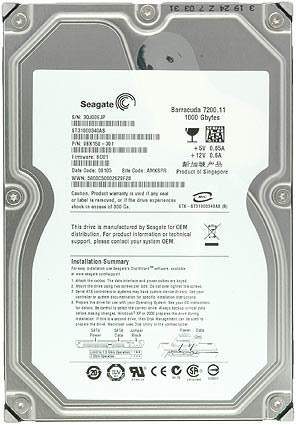

Seagate ST31000340AS 1TB 3Gb/s SATA 7200 3.5-inch 32MB Hard Drive

Key specifications

The figures below come from this listing's own record. They are the ones that decide whether a part drops into an existing system.

• Storage Capacity: 1 TB. Usable capacity as the manufacturer states it.
• Drive Interface: SATA. The bus the drive expects; the controller or backplane has to present the same one.
• Interface Standard: 3Gb/s SATA. The negotiated link standard.
• Maximum Data Transfer Rate: 3Gb/s. Peak link rate, which is not the same as sustained throughput.
• Drive Type: Internal. Where the drive is designed to sit.
• Drive Width: 3.5". Bay width, which decides whether it drops into the slot.
• Cache Storage: 32 MB. Onboard cache or buffer.
• Compliance Standards: RoHS. The standards and certifications recorded for this part.

Confirming fit

Memory Clearance does not publish a verified compatibility list for ST31000340AS. Whether a part of this type is supported is defined by the system or switch vendor's own compatibility matrix, not by the part on its own.

The dependable check is the part number. Read the installed part number from the system's management interface and compare it with the number on this listing. If you send your server model with a quote request, it is checked against this part before you order.

Other Seagate Desktop Hard Drives listings

Other parts in the same brand and category. These are not substitutes for this part number; check the specification before ordering.

• Seagate ST12000NM001J 12TB 12Gbps SAS 7200 3.5-inch 256MB HDD
• Seagate ST8000NEA021 8TB 6Gb/s SATA 7200 3.5-inch 256MB Hard Drive
• Seagate ST10000NE0014 10TB 6Gb/s SATA 7200 3.5-inch 256MB Hard Drive
• Seagate ST4000DMA06 4TB 6Gb/s SATA 7200 3.5-in 128MB Hard Drive
• Seagate ST10000VX0008 10TB 6Gb/s SATA 7200 3.5-inch 256MB Hard Drive
• Seagate ST10000NE000 10TB 6Gb/s SATA 7200 3.5-inch 256MB Hard Drive
• Seagate ST4000NC002 4TB 6Gb/s SATA 7200 3.5-in 128MB Hard Drive
• Seagate ST38421A6 8GB 5400RPM ATA-66 3.5-Inch Hard Drive
• Seagate ST8000DMA05 8TB 6Gb/s SATA 7200 3.5-in 256MB Hard Drive
• Seagate ST4000NM027B 4TB 6Gb/s SATA 7200 3.5-inch 256MB Hard Drive

Common questions

Is ST31000340AS in stock?

Stock moves, so the quantity shown on this listing is the current figure. For a larger quantity, send the part number and how many you need and the answer comes back against that exact number. Quotes are answered weekdays 8:00 am to 5:00 pm PST.

Does this drive come with a tray?

Only if the listing name says so. Drive listings are either bare or supplied in a generation-matched hot-swap tray, and the name states which.

Can I use this to replace a failed array member?

Match the interface, the capacity, the sector format and the class of the drive already in the array. A mismatch on any of those can be rejected by the controller.

What do I send to get a price on ST31000340AS?

The part number, the quantity, the condition you will accept and the server model it goes into. That is enough to answer in one pass.
