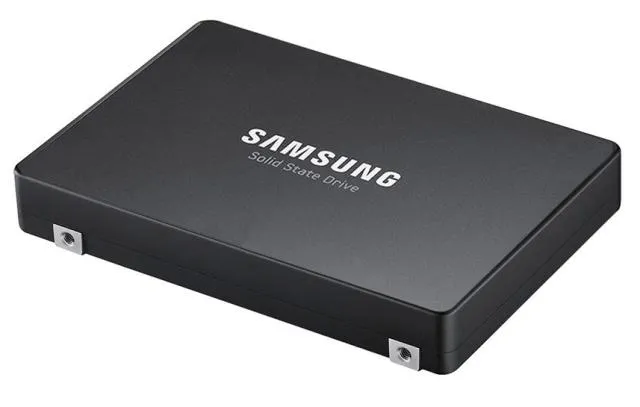

Samsung MZWLL1T6HAJQ-00005 1.6TB PCI Express NVMe 3.0 x4 TLC U.2 SSD

* NOTE: Image may not exactly match the product

Samsung MZWLL1T6HAJQ-00005 1.6TB PCI Express NVMe 3.0 x4 TLC U.2 SSD

Part Number:

MZWLL1T6HAJQ-00005

Manufacturer:

Samsung

Availability:In Stock
Warranty: 90-day

$572.22

Shipping Options:
  • Ships Same Business Day ( If ordered before 2:00pm EST)
  • Free Ground Shipping ( Contiguous US and Canada)
  • Expedite Shipping in US
30 Days Return Warranty
Accept Payment
  • Visa
  • Discover
  • Mastercard
  • Pay with wire transfer
  • AMEX
Process POs for Government Agencies, Enterprises, Data Centers and SMBs

Need Assistance? We are here to help!

  • Call us at (800) 733-1169
    Monday to Friday, 8:00 am - 5:00 pm PST
  • Email: [email protected]
  • Live Chat with Technical Sales

Product Description

Samsung MZWLL1T6HAJQ-00005 PM1725b 1.6TB Triple-Level-Cell PCI Express NVMe 3.0 x4 U.2 2.5-Inch State Drive

Key takeaways

  • Samsung MZWLL1T6HAJQ-00005 is a 1.6TB PCI Express NVMe 3.0 x4 U.2 solid state drive for server use, with Triple-Level Cell flash and PM1725b series.
  • Sold refurbished and in stock at Memory Clearance, with the condition stated on this listing.
  • Reference part number MZWLL1T6HAJQ-00005 when matching this listing to a quote, purchase order or existing inventory; Memory Clearance lists it under Solid State Drives.
  • Priced on this listing, with volume pricing quoted on request, so include the quantity needed.

The Samsung PM1725b MZWLL1T6HAJQ-00005 1.6TB enterprise SSD provides exceptional performance and minimal latency even with demanding, high-concurrency workloads, ensuring top-notch QoS standards. It comes in a 2.5-inch AIC form factor, offering a versatile balance of endurance and capacity for peak efficiency.

Key specifications

The figures below come from this listing's own record. They are the ones that decide whether a part drops into an existing system.

  • Storage Capacity: 1.6 TB. Usable capacity as the manufacturer states it.
  • Drive Interface: PCI Express NVMe. The bus the drive expects; the controller or backplane has to present the same one.
  • Interface Standard: PCI Express NVMe 3.0 x4. The negotiated link standard.
  • Drive Width: 2.5". Bay width, which decides whether it drops into the slot.
  • Flash Memory Technology: Triple-Level Cell. The NAND type, which tracks with endurance and cost.
  • Form Factor: SFF. The size or mounting class the catalogue records for this part.

Confirming fit

Memory Clearance does not publish a verified compatibility list for MZWLL1T6HAJQ-00005. Whether a part of this type is supported is defined by the system or switch vendor's own compatibility matrix, not by the part on its own.

The dependable check is the part number. Read the installed part number from the system's management interface and compare it with the number on this listing. If you send your server model with a quote request, it is checked against this part before you order.

Other Samsung Solid State Drives listings

Other parts in the same brand and category. These are not substitutes for this part number; check the specification before ordering.

Common questions

Is MZWLL1T6HAJQ-00005 in stock?

Stock moves, so the quantity shown on this listing is the current figure. For a larger quantity, send the part number and how many you need and the answer comes back against that exact number. Quotes are answered weekdays 8:00 am to 5:00 pm PST.

Does this drive come with a tray?

Only if the listing name says so. Drive listings are either bare or supplied in a generation-matched hot-swap tray, and the name states which.

Can I use this to replace a failed array member?

Match the interface, the capacity, the sector format and the class of the drive already in the array. A mismatch on any of those can be rejected by the controller.

What do I send to get a price on MZWLL1T6HAJQ-00005?

The part number, the quantity, the condition you will accept and the server model it goes into. That is enough to answer in one pass.

Guides

Browse related listings

•Equipped with Samsung’s advanced 3D V-NAND technology

•Ideal for read-centric data center applications

•Utilizes a PCI Express NVMe 3.0 x4 interface for superior performance

•Ensures data integrity during routine shutdowns

•Be aware that power or hardware failures may lead to data loss due to an unprotected DRAM cache

Product Condition:Refurbished

General Information

Product Series
PM1725b
Product Type
Solid State Drive

Technical Information

Drive Width
2.5"
Flash Memory Technology
Triple-Level Cell
Random Read
720K IOPS
Random Write
135K IOPS
Sequential Read
3500 MB/s
Sequential Write
2000 MB/s
Storage Capacity
1.6 TB

Interfaces/Ports

Drive Interface
PCI Express NVMe
Interface Standard
PCI Express NVMe 3.0 x4

Physical Characteristics

Form Factor
  • SFF
Weight
2
