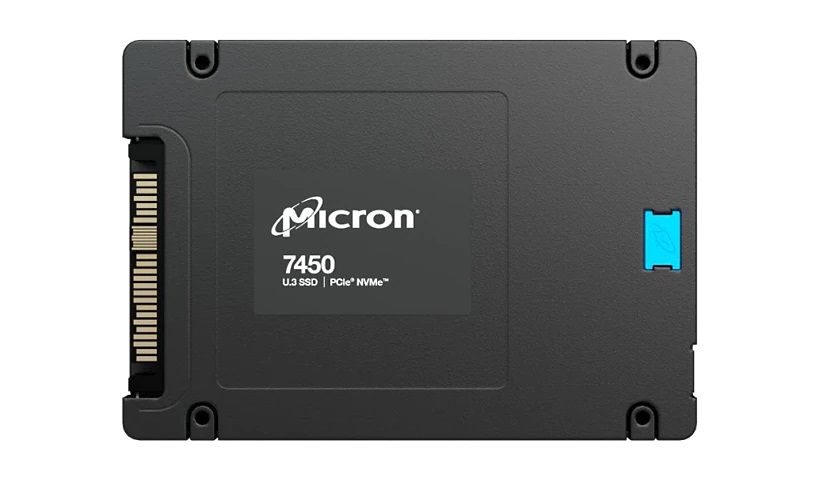

Micron MTFDKCC3T2TFS-1BC15ABYYR 3.2TB PCI Express NVMe 4.0 x4 2.5-inch SSD
* NOTE: Image may not exactly match the product
Micron MTFDKCC3T2TFS-1BC15ABYYR 3.2TB PCI Express NVMe 4.0 x4 2.5-inch SSD
MTFDKCC3T2TFS-1BC15ABYYR
Micron
$3,474.90
Shipping Options:
- Ships Same Business Day ( If ordered before 2:00pm EST)
- Free Ground Shipping ( Contiguous US and Canada)
- Expedite Shipping in US
30 Days Return Warranty
Accept Payment
- Visa
- Discover
- Mastercard
- Pay with wire transfer
- AMEX
Process POs for Government Agencies, Enterprises, Data Centers and SMBs
Need Assistance? We are here to help!
- Call us at (800) 733-1169
Monday to Friday, 8:00 am - 5:00 pm PST - Email: [email protected]
- Live Chat with Technical Sales
Product Description
Key takeaways
- Micron MTFDKCC3T2TFS-1BC15ABYYR is a 3.2TB PCI Express NVMe 4.0 x4 2.5-inch internal solid state drive for server use, with Triple-Level Cell flash and 7450 MAX series.
- Sold new, with the condition stated on this listing and a package quantity of 1.
- Reference part number MTFDKCC3T2TFS-1BC15ABYYR or UPC 0649528926456 when matching this listing to a quote, purchase order or existing inventory; Memory Clearance lists it under Solid State Drives.
- Priced on this listing, with volume pricing quoted on request, so include the quantity needed.
The Micron MTFDKCC3T2TFS-1BC15ABYYR PCI Express NVMe 4.0 7450 Max SSD is designed specifically for data centers, leveraging advanced 176-layer NAND technology to enhance performance in database environments such as SQL Server, Oracle, MySQL, RocksDB, Cassandra, and Aerospike. With a 3.2TB storage option, it meets the demanding requirements of modern data centers.
This SSD supports the OCP (Open Compute Project) NVMe 2.0 standard, effectively addressing critical data center challenges. It features built-in power-loss protection and is optimized for use with NVMe-compatible servers and storage systems, making it ideal for high-performance computing environments, enterprise applications, and data center deployments. U.3 (2.5-Inch) form factor makes it possible to support different platforms.
Key specifications
The figures below come from this listing's own record. They are the ones that decide whether a part drops into an existing system.
- Storage Capacity: 3.2 TB. Usable capacity as the manufacturer states it.
- Drive Interface: PCI Express NVMe. The bus the drive expects; the controller or backplane has to present the same one.
- Interface Standard: PCI Express NVMe 4.0 x4. The negotiated link standard.
- Drive Type: Internal. Where the drive is designed to sit.
- Drive Width: 2.5". Bay width, which decides whether it drops into the slot.
- Flash Memory Technology: Triple-Level Cell. The NAND type, which tracks with endurance and cost.
- Form Factor: U.3. The size or mounting class the catalogue records for this part.
Confirming fit
Memory Clearance does not publish a verified compatibility list for MTFDKCC3T2TFS-1BC15ABYYR. Whether a part of this type is supported is defined by the system or switch vendor's own compatibility matrix, not by the part on its own.
The dependable check is the part number. Read the installed part number from the system's management interface and compare it with the number on this listing. If you send your server model with a quote request, it is checked against this part before you order.
Other Micron Solid State Drives listings
Other parts in the same brand and category. These are not substitutes for this part number; check the specification before ordering.
- Micron MTFDGAL350MAX-1AG13A 350GB PCI Express 2.0 x8 MLC U.2 2.5-inch SSD
- Micron MTFDDAK060MBD 60GB 6Gb/s SATA Multi-Level Cell 2.5-inch SSD
- Micron MTFDGAL700MAX-1AG1Z 700GB PCI Express 2.0 x4 MLC 2.5-inch SSD
- Micron MTFDJAK480MBT-2AN1ZAB 480GB 12Gb/s SAS MLC 2.5-inch SSD
- Micron MTFDDAK240MBD-1AK12ITYY 240GB 6Gb/s SATA MLC 2.5-inch SSD
- Micron MTFDDAK128MBD-2AK12IT 128GB 6Gb/s SATA MLC 2.5-inch SSD
- Micron MTFDGAL700MAX 700GB PCI Express 2.0 x8 MLC 2.5-inch SSD
- Micron MTFDDAA128MAG-1G1 128GB 6Gb/s SATA Multi-Level Cell 1.8-inch SSD
- Micron MTFDBAC128SAE 128GB 3Gb/s SATA Single-Level Cell 2.5-inch SSD
- Micron MTFDDAA128MAM-1K11AA 128GB 6Gb/s SATA Multi-Level Cell 1.8-inch SSD
Common questions
Is MTFDKCC3T2TFS-1BC15ABYYR in stock?
Stock moves, so the quantity shown on this listing is the current figure. For a larger quantity, send the part number and how many you need and the answer comes back against that exact number. Quotes are answered weekdays 8:00 am to 5:00 pm PST.
Does this drive come with a tray?
Only if the listing name says so. Drive listings are either bare or supplied in a generation-matched hot-swap tray, and the name states which.
Can I use this to replace a failed array member?
Match the interface, the capacity, the sector format and the class of the drive already in the array. A mismatch on any of those can be rejected by the controller.
What do I send to get a price on MTFDKCC3T2TFS-1BC15ABYYR?
The part number, the quantity, the condition you will accept and the server model it goes into. That is enough to answer in one pass.
