Seagate 9FU066-150 146.8GB 6Gb/s SAS 15000 2.5-in 16MB Hard Drive

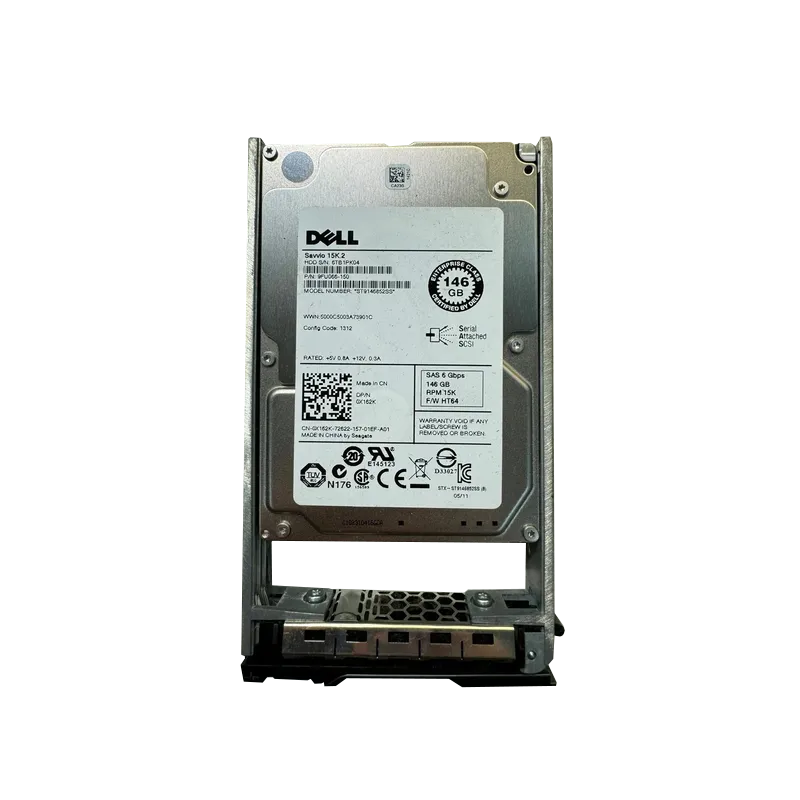

* NOTE: Image may not exactly match the product

Seagate 9FU066-150 146.8GB 6Gb/s SAS 15000 2.5-in 16MB Hard Drive

Part Number:

9FU066-150

Manufacturer:

Seagate

Availability:In Stock
Warranty: 90-day

$113.85

Shipping Options:
  • Ships Same Business Day ( If ordered before 2:00pm EST)
  • Free Ground Shipping ( Contiguous US and Canada)
  • Expedite Shipping in US
30 Days Return Warranty
Accept Payment
  • Visa
  • Discover
  • Mastercard
  • Pay with wire transfer
  • AMEX
Process POs for Government Agencies, Enterprises, Data Centers and SMBs

Need Assistance? We are here to help!

  • Call us at (800) 733-1169
    Monday to Friday, 8:00 am - 5:00 pm PST
  • Email: [email protected]
  • Live Chat with Technical Sales

Product Description

Seagate 9FU066-150 Savvio 15K.2 Series 146.8GB 15000RPM SAS 6Gb/s 16MB Cache (SED) 2.5-Inch Hard Drive

Key takeaways

  • Seagate 9FU066-150 is a 146.8GB 6Gb/s SAS 2.5-inch internal hard drive in the Savvio line for notebook use, with 15000 RPM, 16MB cache, 15K.2 series and 0.78 x 3.97 x 5.73 inches.
  • Sold refurbished and in stock at Memory Clearance, with the condition stated on this listing and a package quantity of 1.
  • Reference part number 9FU066-150 or UPC 7427451541532 (EAN 07427451541532) when matching this listing to a quote, purchase order or existing inventory; Memory Clearance lists it under Server Hard Drives.
  • Priced on this listing, with volume pricing quoted on request, so include the quantity needed.

Seagate Savvio 15K.2 9FU066-150 brings top-tier performance and compact design to space-constrained IT environments. Available in a 146.8GB capacity and 2.5-Inch form factor, this drive features a powerful 15,000 RPM spindle speed and 6Gb/s SAS interface for rapid data processing. Engineered to enhance system efficiency by 115% compared to standard 3.5-inch 15K drives, the Savvio 15K.2 also reduces power usage and improves cooling. Built for demanding enterprise applications, this model includes optional self-encryption (SED) for robust, compliant data security.

Key specifications

The figures below come from this listing's own record. They are the ones that decide whether a part drops into an existing system.

  • Storage Capacity: 146.8 GB. Usable capacity as the manufacturer states it.
  • Drive Interface: SAS. The bus the drive expects; the controller or backplane has to present the same one.
  • Interface Standard: 6Gb/s SAS. The negotiated link standard.
  • Maximum Data Transfer Rate: 6 Gb/s. Peak link rate, which is not the same as sustained throughput.
  • Drive Type: Internal. Where the drive is designed to sit.
  • Drive Width: 2.5". Bay width, which decides whether it drops into the slot.
  • RPM: 15000. Rotational speed recorded for this part.
  • Cache Storage: 16MB. Onboard cache or buffer.

Confirming fit

Memory Clearance does not publish a verified compatibility list for 9FU066-150. Whether a part of this type is supported is defined by the system or switch vendor's own compatibility matrix, not by the part on its own.

The dependable check is the part number. Read the installed part number from the system's management interface and compare it with the number on this listing. If you send your server model with a quote request, it is checked against this part before you order.

Other Seagate Server Hard Drives listings

Other parts in the same brand and category. These are not substitutes for this part number; check the specification before ordering.

Common questions

Is 9FU066-150 in stock?

Stock moves, so the quantity shown on this listing is the current figure. For a larger quantity, send the part number and how many you need and the answer comes back against that exact number. Quotes are answered weekdays 8:00 am to 5:00 pm PST.

Does this drive come with a tray?

Only if the listing name says so. Drive listings are either bare or supplied in a generation-matched hot-swap tray, and the name states which.

Can I use this to replace a failed array member?

Match the interface, the capacity, the sector format and the class of the drive already in the array. A mismatch on any of those can be rejected by the controller.

What do I send to get a price on 9FU066-150?

The part number, the quantity, the condition you will accept and the server model it goes into. That is enough to answer in one pass.

Guides

Browse related listings

High IOPS per Watt

Optimized power consumption

SED and FIPS-compliant SED security options

Seagate PowerTrim technology for greater energy efficiency

Perfect for high-performance enterprise servers and storage arrays

Supports OEMs in creating powerful, low-power storage solutions

Product Condition:Refurbished

General Information

Product Line
Savvio
Product Series
15K.2
Product Type
Hard Drive

Technical Information

Cache Storage
16MB
Drive Type
Internal
Drive Width
2.5"
Encryption Algorithm
Self-Encrypting Drives (SED)
Maximum Data Transfer Rate
6 Gb/s
RPM
15000
Storage Capacity
146.8 GB

Interfaces/Ports

Drive Interface
SAS
Interface Standard
6Gb/s SAS

Miscellaneous

Compliance Standards
  • RoHS
  • WEEE
Seagate Secure (Specific for Seagate)
Self-Encrypting Drives (SED)
