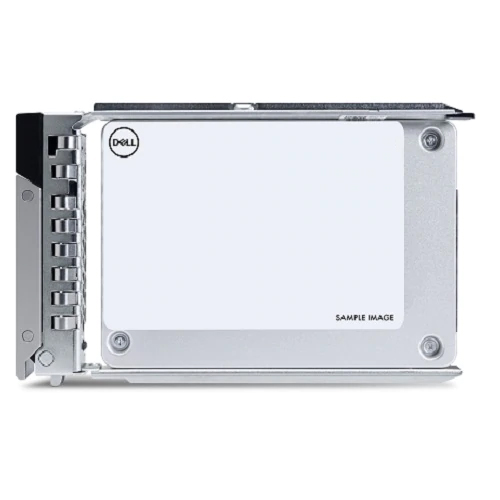

Dell 345-BBWF 3.84TB 12Gb/s SAS TLC 2.5-in SSD

Key specifications

The figures below come from this listing's own record. They are the ones that decide whether a part drops into an existing system.

• Storage Capacity: 3.84 TB. Usable capacity as the manufacturer states it.
• Drive Interface: SAS. The bus the drive expects; the controller or backplane has to present the same one.
• Interface Standard: 12Gb/s SAS. The negotiated link standard.
• Maximum Data Transfer Rate: 12Gb/s. Peak link rate, which is not the same as sustained throughput.
• Drive Width: 2.5". Bay width, which decides whether it drops into the slot.
• Flash Memory Technology: Triple-Level Cell. The NAND type, which tracks with endurance and cost.
• Form Factor: SFF. The size or mounting class the catalogue records for this part.
• Swappable: Yes. Whether the part is designed to be changed with the system running.

Confirming fit

Memory Clearance does not publish a verified compatibility list for 345-BBWF. Whether a part of this type is supported is defined by the system or switch vendor's own compatibility matrix, not by the part on its own.

The dependable check is the part number. Read the installed part number from the system's management interface and compare it with the number on this listing. If you send your server model with a quote request, it is checked against this part before you order.

Other Dell Solid State Drives listings

Other parts in the same brand and category. These are not substitutes for this part number; check the specification before ordering.

• Dell 0U280D 32GB 3Gb/s SATA Single-Level Cell 2.5-inch Solid State Drive
• Dell X71V0 200GB 6Gb/s SAS Single-Level Cell 2.5-inch Solid State Drive
• Dell 0U287D 32GB SATA Solid State Drive
• Dell R342C 32GB SATA 2.5-Inch Solid State Drive
• Dell 341-7723 64GB 3Gb/s SATA MLC 2.5-in Solid State Drive
• Dell 0PW658 32GB SATA 2.5-Inch Solid State Drive for Latitude D530
• Dell 341-6709 64GB SATA 1.5Gb/s Solid State Drive
• Dell GW526 32GB Multi-level Cell SATA 6Gb/s 2.5-Inch Solid State Drive
• Dell PW658 32GB SATA 2.5-Inch Solid State Drive for Latitude D530
• Dell RM423 64GB SATA Solid State Drive

Common questions

Is 345-BBWF in stock?

Stock moves, so the quantity shown on this listing is the current figure. For a larger quantity, send the part number and how many you need and the answer comes back against that exact number. Quotes are answered weekdays 8:00 am to 5:00 pm PST.

Does this drive come with a tray?

Only if the listing name says so. Drive listings are either bare or supplied in a generation-matched hot-swap tray, and the name states which.

Can I use this to replace a failed array member?

Match the interface, the capacity, the sector format and the class of the drive already in the array. A mismatch on any of those can be rejected by the controller.

What do I send to get a price on 345-BBWF?

The part number, the quantity, the condition you will accept and the server model it goes into. That is enough to answer in one pass.
